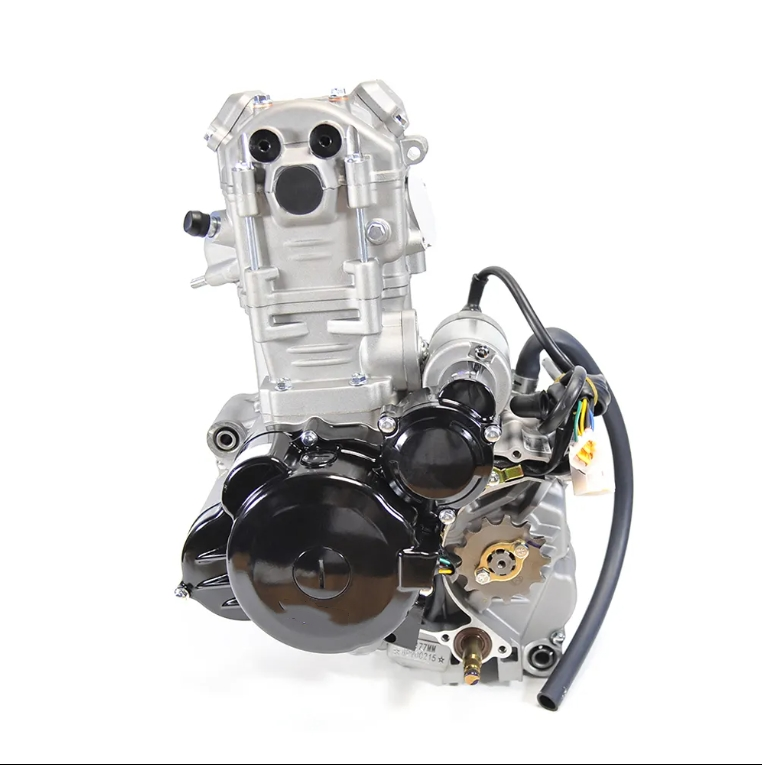

Zongshen Engine CBS300 ZS174MN3

Name: Zongshen Engine CBS300 ZS174MN3
Brand: ZONGSHEN
Price: 818.0 USD
Availability: OutOfStock

by ZONGSHEN

Sold out

$818.00 - $818.00

$818.00

$818.00 - $818.00

$818.00

Quantity

Engine

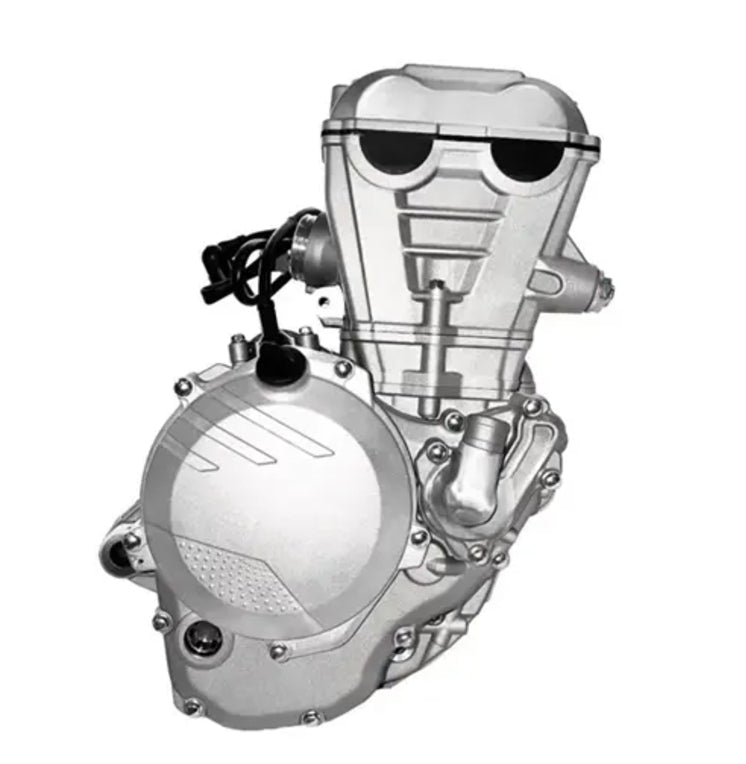

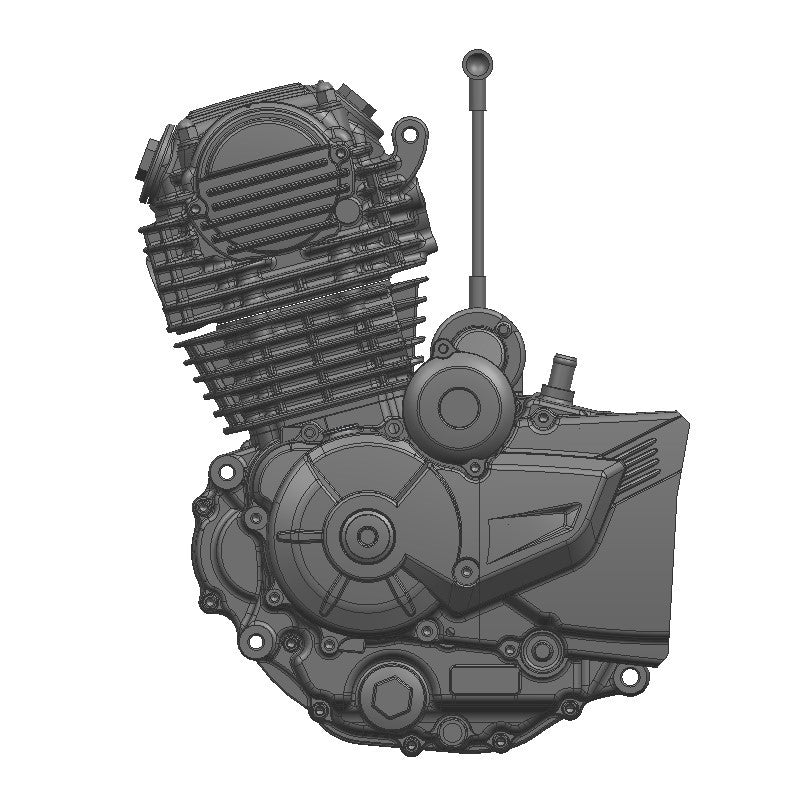

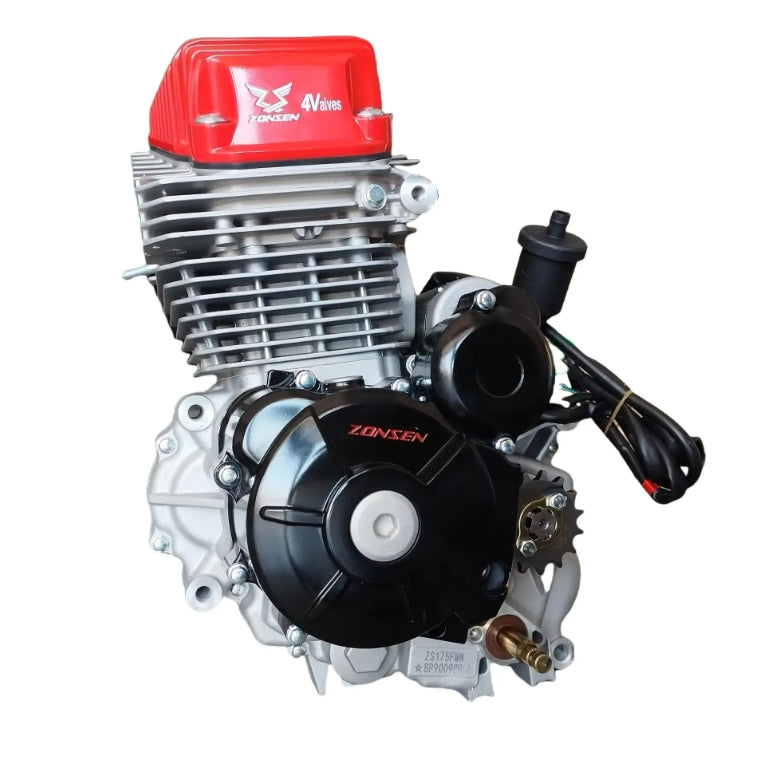

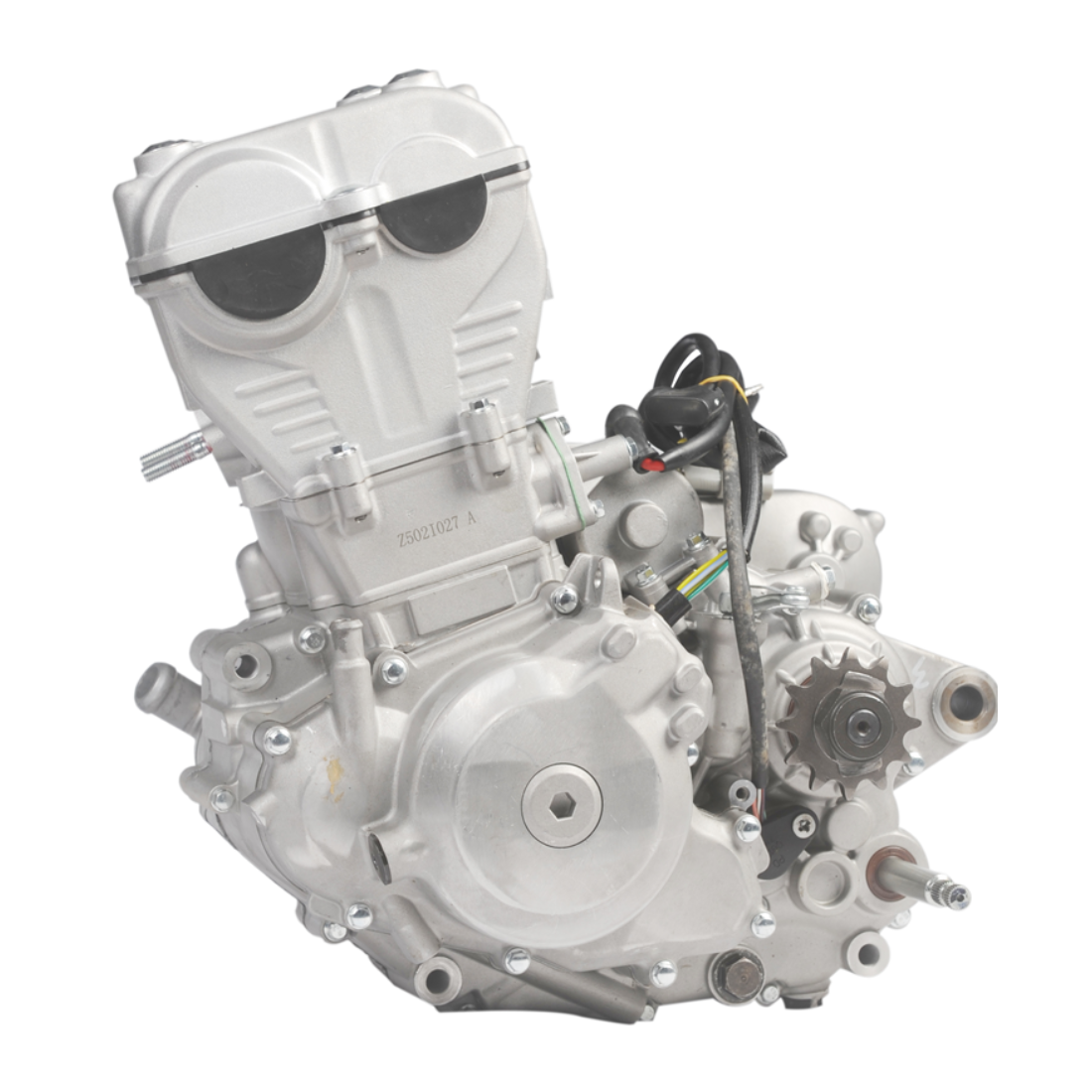

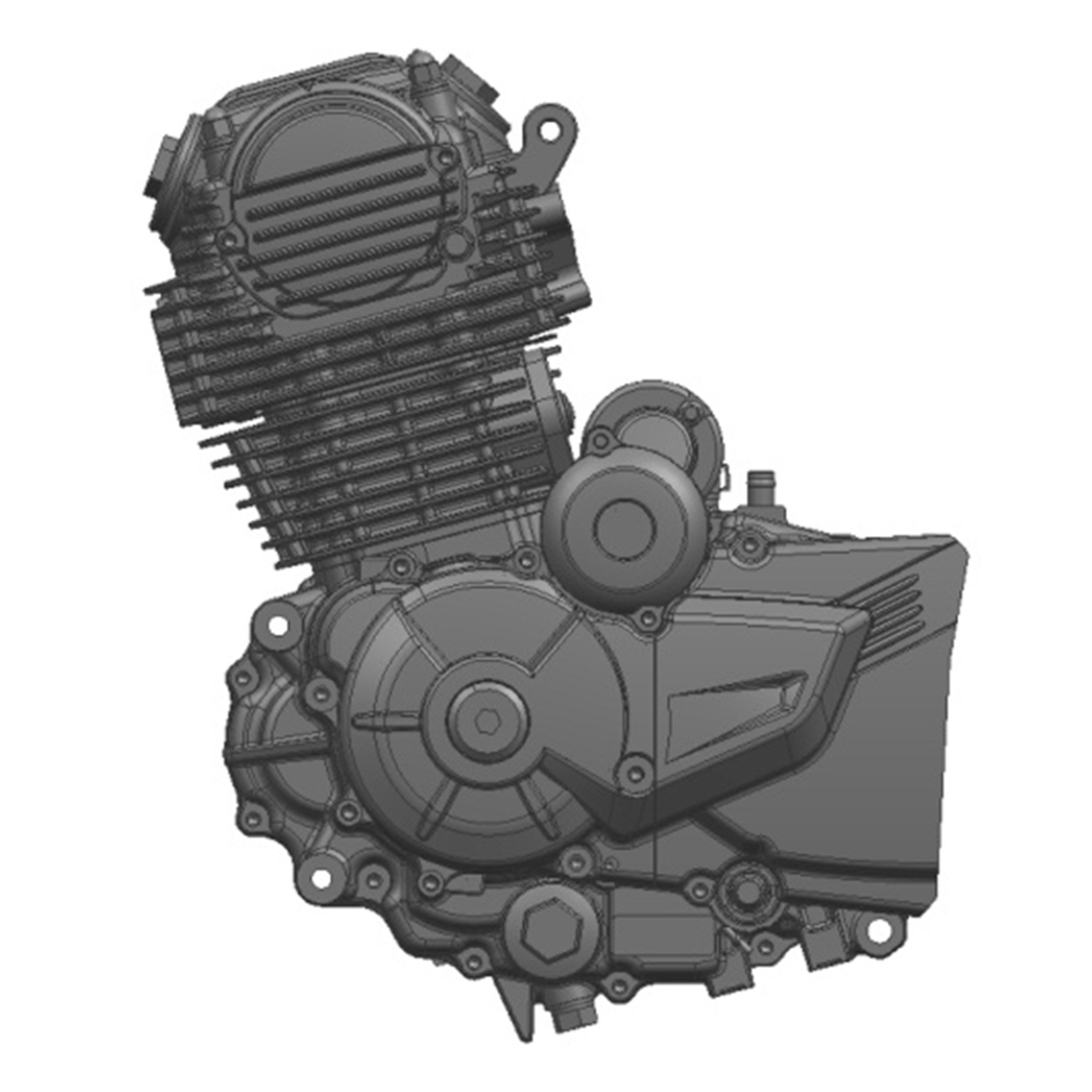

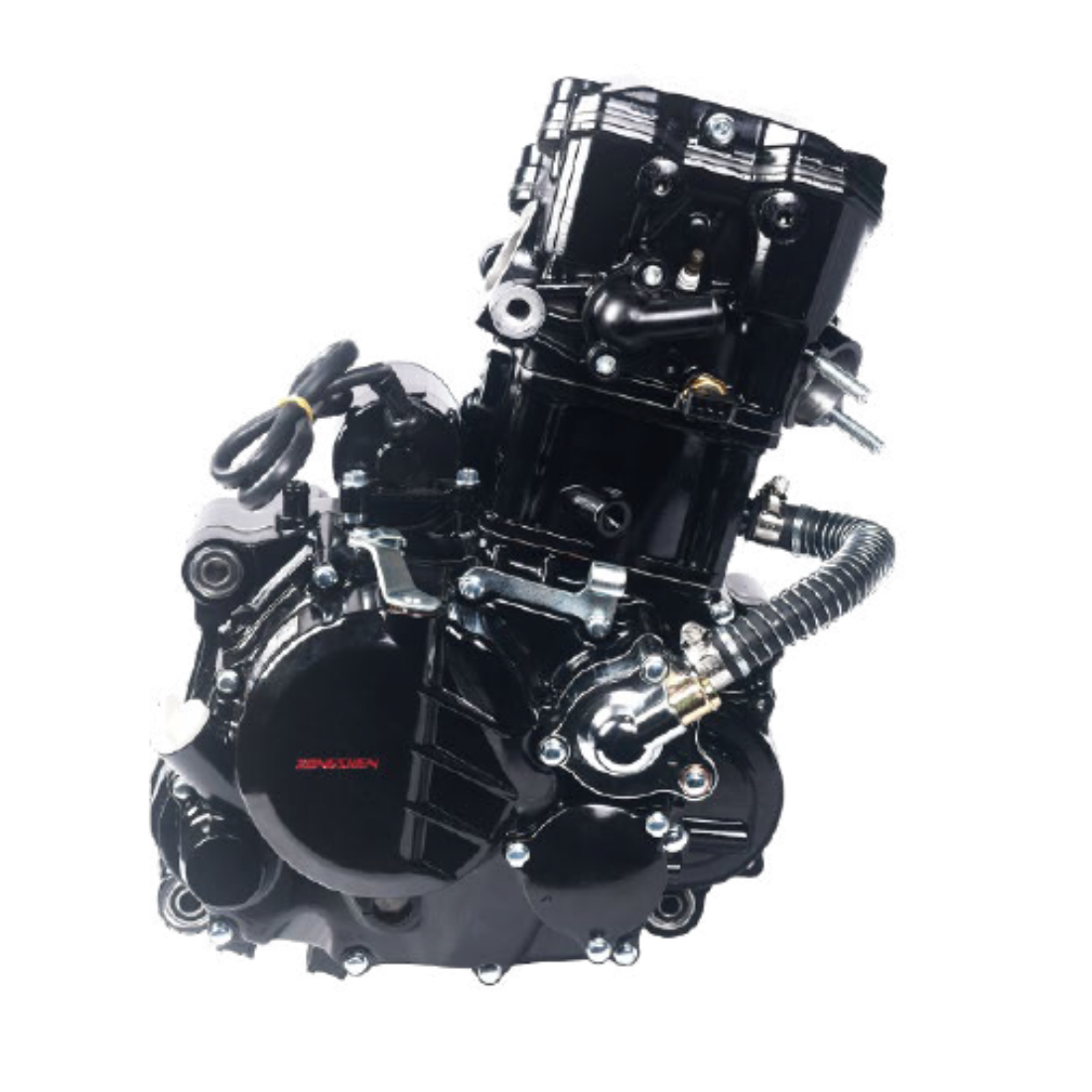

	Zongshen Engine CBS300 ZS174MN3$818.00 (0) View details	Zongshen Engine CB300RL ZS175FMM$748.00 (0) View details	Zongshen Engine NB300 ZS174MN-5$870.00 (0) View details	Zongshen Engine NC300S ZS182MN$1,496.00 (0) View details	Zongshen Engine NX250$2,358.00 (0) View details	Zongshen Engine PR300 ZS175FMN$685.00 (0) View details	Zongshen Engine PR300 Pro$738.00 (0) View details
Engine Model	ZS174MN-3	ZS175FMN	ZS174MN-5	ZS182MN	ZS178MM-2	ZS175FMN	ZS177FMN
Engine Type	Single Cylinder, 4-Stroke	Single Cylinder, 4-Stroke	Single Cylinder, 4-Stroke	Single Cylinder, 4-Stroke	Single Cylinder, 4-Stroke	Single Cylinder, 4-Stroke	Single Cylinder, 4-Stroke
Valve	4-Valve	4-Valve	4-Valve	4-Valve	4-Valve	2 valve	2 valve
Cooling System	Water Cooled	Air cooled	Water Cooled	Water Cooled	Water Cooled	Air cooled	Oil cooled
Balance	Balance Shaft	Balance Shaft	Balance Shaft	Balance Shaft	Balance Shaft	Balance Shaft	With Balance shaft
Displacement	279.5 ml	271.30 ml	279.60 ml	283 ml	249.8 ml	271.30 ml	297.90 ml
Bore & Stroke	74*65	75 * 61.4	74×65	82 x 53.6	78*52.32	75 * 61.4	77 * 64
Compression Ratio	11.1:1	—	10.5:1	11.6 : 1	13.4 : 1	9.29:1	9.0:1
Power Max.	18.5KW/8500r/min (25.1HP)	18.42 / 8500 ( 24.8HP)	19/8500(25.47HP)	25/ 9000	32 / 11000 kw/r/min	15.5 kw/8500rpm ( 20.8HP )	18 kw/8500rpm ( 24.5HP )
Torque Max.	23/7000	22.38 / 6500	24/7500	27 / 7000	28.5 / 9000 N.m/r/min	21 N.m/6500rpm	24 N.m/6500rpm
Starting Type	E & K	Electrical	Electrical & Kick	Electrical & Kick	E Only	Electrical & Kick	Electrical
Clutch	Manual	—	Manual	Manual	Manual	Manual	Manual
Transmission	5-Speed	6-Speed	6-Speed	6-Speed	5 Speed	6-Speed	6-Speed
Net Weight	36.0 kg	36.0 kg	33.6 kg	36.0 kg	30.0 kg	33.7 kg	33.4 kg
Intake System	Carburetor PWK34	Carburetor PWK34	Carburetor PWK34	Carburetor PWK34	Carburetor PWK34	Carburetor PWK34	Carburetor TBC
Price	$818.00	$748.00	$870.00	$1,496.00	$2,358.00	$685.00	$738.00

Zongshen Engine CBS300 ZS174MN3

Parts Catalogue Download
